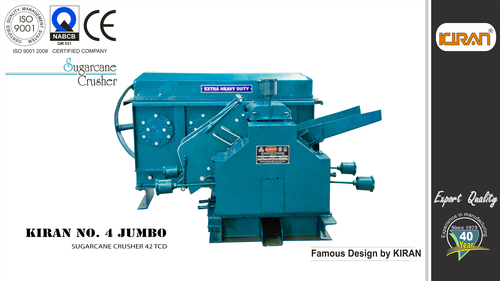

Heavy Duty Sugarcane Crusher Machine

Heavy Duty Sugarcane Crusher Machine
Heavy Duty Sugarcane Crusher Machine
Send Inquiry
Product Code : SCC1
Brand Name : Kiran Engineering Works
Price And Quantity
  • Unit of Measure
  • ,
Product Description
We offer a wide range of Heavy Duty Sugarcane Crusher Machine which is highly cherished among clients due to its fast processing speed and user-friendly design. Offered machine is available in various specifications according to needs of clients. This machine finds it applications in commercial and industrial places. Provided machine is mainly used for extracting juice of sugarcane in hassle free manner. it is made using quality tested components with latest innovative techniques. In addition to this, offered Heavy Duty Sugarcane Crusher Machine is checked at our ends for ensuring its durability.

Heavy Duty Sugarcane Crusher Machine India

  • Rollers : Rollers made of special graded cast iron for longer life. Specially designed V-type grooves on the rollers to extract maximum juice.
  • Bush : Bush are made from standard material thus last longer only required regular grease/lubricant.
  • Gears : High tempered qualitative iron is used for making gears. These gears are running in all both lubrication system, it is totally packed, bearing oil seal. It provides safety.
  • Axles : High-grade steel is used for all Excel for extra strength and efficiency. Excel are duty fixed and fitted with hydraulic pressure & key is place tightly between rollers which keeps rollers and Excel extremely tight.
  • Bearing : taper roller bearing made qualitative materials has least chance of wear and tear.
  • Side Plates : Side plates are totally made of steel and joined separately & accurately, Special care is taken to make it stronger to bear maximum load.

Crusher Complete Set Accessories

  • Krian Brand Sugarcane Crusher

  • Oil Engine and Motor

  • Juice Open Pem (Kadai)

  • Crusher Foundation (Classic)

  • Couster with Pedestal Complete

  • Juice and Water Pump

  • V-Belts Pully & Belts, Bolt & Nut, Spanner, Punch

  • Alternator, Generators Set 2.2 KVA to 100 KAV

Technical Specifications
Model No. Name Of Model Roller Length Capacity Per Day Ton Capacity kg/Hr Pully Capacity R.P.M. Crusher R.P.M. Motor H.P. Engine H.P. Planetary Gear H.P.
Inch MM
Kiran Yamuna1 – Stainless Steel 7 ½ 191 4.5 200/300 20 400 3 3 2
Kiran-No.1 Semi Young 6 ½ 165 16 550/700 8 240 5 8 3
Kiran-No.1.5 Heavy Young 7 ½ 191 18 700/800 8 240 7.5 10 7.5
Kiran-No.2 Running Light 8” 203 20 725/925 8 192 7.5 10 7.5
Kiran-No.2 Running Heavy 8 ½ 216 24 900/1000 8 192 7.5 15 10
Kiran-No.3 Semi Deluxe 9 ½ 242 32 1250/1350 8 200 15 18 12.5
Kiran-No.3.5 Super Deluxe 10” 254 3805 1550/1650 8 200 15 22 15
Kiran-No.4 Jumbo Deluxe 10 ½ 267 40 1650/1750 8 200 20 22 15
Kiran-No.4.5 Jumbo Super Extra 11” 305 45 1850/2100 8 200 25 25 20
Kiran-No.5 C.N. King 12” 305 55 2250/2400 8 200 25 25 20
Kiran-No.5.5 Turbo Heavy 12 ½ 318 60 2400/2500 8 200 30 + - 25
Kiran-No.6 Agni Heavy 14 1/8 360 70 2900/3000 8 200 40 - 30
Kiran-No.7 King of Maharaja 17 1/8 435 90 3800/4000 8 200 50 - 40
